# How Often Should You Service Diesel Injectors?
When it comes to diesel engine health, few components carry as much responsibility as the fuel injectors. Operating under extreme pressures and intense heat, injectors are the gatekeepers of your engine's power, efficiency, and emissions.
But because they are tucked away inside the cylinder head, they are often a case of "out of sight, out of mind"—until something goes wrong. So, how often should you actually service them?
The short answer is that **mechanical diesel injectors generally require service or inspection every 100,000 to 150,000 kilometers (or roughly 3,000 to 4,000 hours for heavy equipment), while modern common-rail electronic injectors are built to last 200,000 to 300,000 kilometers, provided maintenance standards are strictly met.**
However, "servicing" means different things depending on your fuel system, and the ideal interval depends heavily on your operating conditions. Let's break down what you need to know to keep your fuel system running clean.
---
## Service Intervals: Mechanical vs. Common-Rail Systems
Not all diesel fuel systems are engineered the same way, and the type of technology under the hood dictates your maintenance strategy.
### 1. Traditional Mechanical Injectors
Older, mechanical fuel systems operate at lower injection pressures compared to modern systems. Over time, the internal springs lose tension, and carbon deposits foul the nozzle tips.
* **The Service Interval:** Every **100,000 to 150,000 km** (or **3,000 hours**).

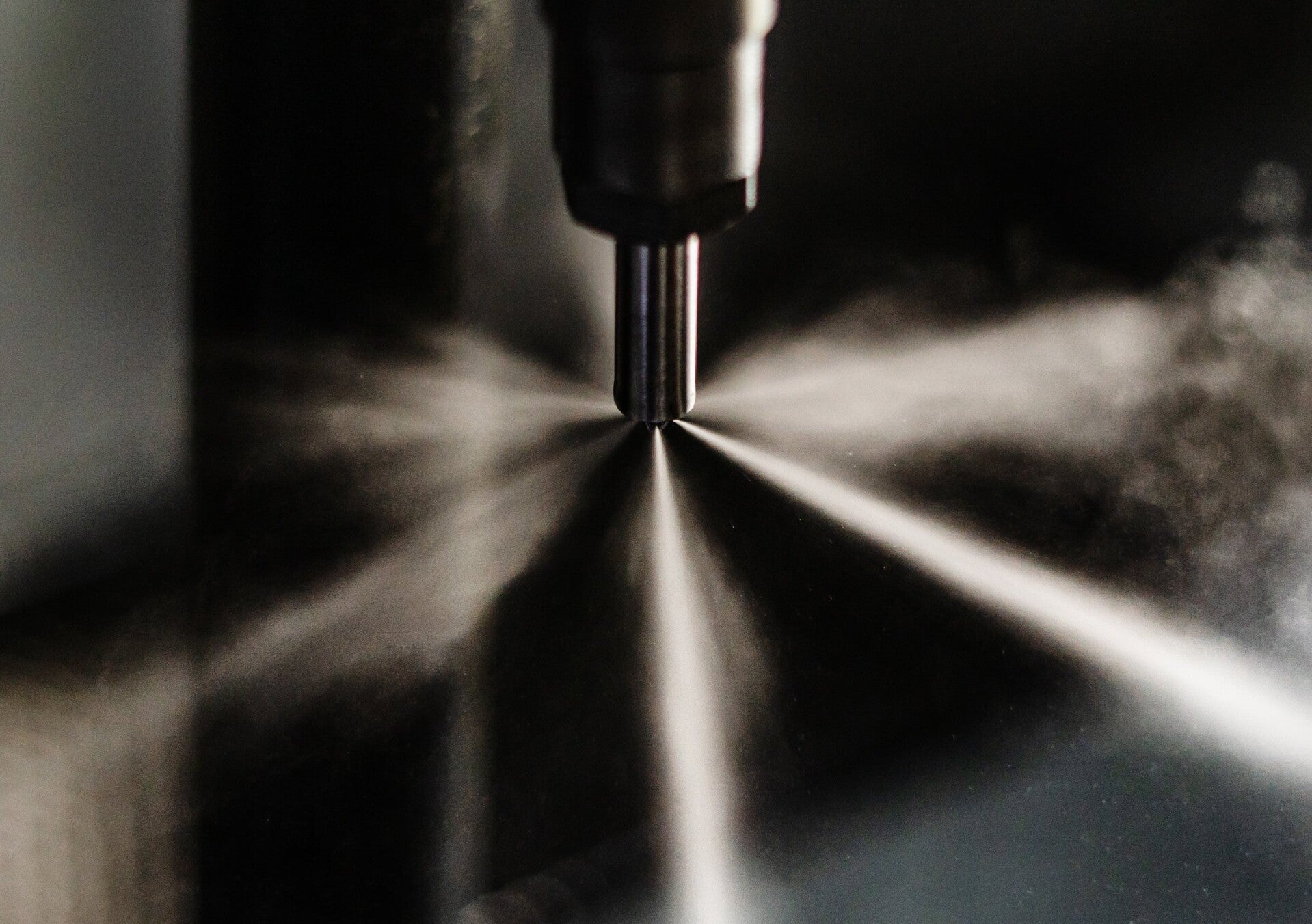

* **What Servicing Looks Like:** These injectors can often be pulled, cleaned, shimmed to restore correct pop-pressure, and have their spray patterns verified on a test bench.
### 2. High-Pressure Common-Rail (HPCR) Systems
Modern electronic engines utilize HPCR systems that operate at astronomical pressures—frequently exceeding 30,000 psi. The tolerances inside an electronic injector are measured in microns. Because the fuel itself acts as the lubricant for these precision components, even microscopic contaminants can cause severe internal wear.
* **The Service Interval:** Every **200,000 to 300,000 km** (or **6,000 to 8,000 hours**).
* **What Servicing Looks Like:** HPCR injectors are rarely "serviced" in the field; instead, they are diagnosed via electronic contribution tests and fuel return flow measurements, then replaced or professionally remanufactured when they begin to fail.
---
---
## Red Flags: Warning Signs Your Injectors Need Attention
You shouldn't always wait for a specific number on the odometer or hour meter. If your injectors are struggling, the engine will tell you. Watch out for these classic symptoms:
* **Rough Idling or Misfires:** Clogged nozzle holes or poor atomization prevents the fuel from mixing correctly with compressed air, leading to a choppy idle.
* **Excessive Smoke:** White or grey smoke usually indicates unburnt fuel passing through the exhaust (often caused by a leaking or dripping injector nozzle). Black smoke points to an over-rich fuel mixture, meaning the injector is delivering too much fuel or firing with a distorted spray pattern.
* **Fuel in the Oil (Dilution):** If an injector tip is stuck open or cracked, fuel can wash down the cylinder walls and contaminate the crankcase oil. This dilutes your oil's viscosity, risking catastrophic bearing failure.
* **Hard Starts:** If an HPCR injector has excessive internal return leakage, the fuel rail won't build up enough pressure during cranking to allow the ECM to command the engine to start.
---
## Proactive Tips to Extend Injector Lifespan
If you want to push your injectors to the absolute limit of their lifespan, the strategy is simple: control your fluid quality.
> **The Golden Rule of Diesel Maintenance:** Fuel filters are your primary line of defense.
* **Change Filters Religiously:** Replace your primary and secondary fuel filters exactly on schedule—or earlier if operating in dusty, high-load environments. Always use high-quality filters with an appropriate micron rating capable of trapping tiny abrasive particles and separating water.
* **Manage Water Separation:** Water is fatal to diesel injectors. It causes immediate corrosion on precision surfaces and can blow tips completely off due to rapid steam expansion. Drain your water separator daily.
* **Use Quality Fuel and Additives:** Stick to reputable fuel sources to minimize fuel contamination. Running a high-quality fuel conditioner can help maintain fuel localized lubricity and keep deposit buildups off the nozzle tips.
## The Bottom Line
Preventative maintenance is always a fraction of the cost of an emergency repair. Regularly replacing fuel filters and paying attention to early performance warnings will save your injectors, protect your cylinders, and keep your equipment working.
